GFT · German Fluorolined Technology

High Quality PFA Lined
Valves Manufacturer

GERMAN FLUOROLINED TECHNOLOGY · SINCE 1975

From our German engineering roots to our China joint-venture factory, GFT delivers fully PFA-lined process valves to DIN & ASME standards — with the same technology, materials and quality as our German plant.

German Technology, Global Delivery

GFT German Fluorolined Technik GmbH is headquartered in Kempen, Germany. In 2021 we established a joint-venture factory — Jiangsu GFT Equipment Engineering Co., Ltd. — in Taixing, China, using identical technology and production standards.

ACE Mender Pty Ltd serves as our Asia-Pacific Sales Center. All GFT products follow DIN / ASME standards, with valve castings to German PED / ASTM requirements and MTC 3.1 test reports available.

Learn more →
1975
German origin
2021
China joint venture
DIN
& ASME standards
3.1
MTC test reports

Three Locations, One Standard

German company, China manufacturing, and an Asia-Pacific sales & service center.

GFT Germany factory
DE

Germany — GFT German Fluorolined Technik GmbH

Hooghe Weg 16, 47906 Kempen, Germany. Founded 1975 as Dr. Mauer Werkzeugfabrik GmbH, renamed GFT in 2015. Source of our technology, standards and material specification.

GFT China factory
CN

China — Jiangsu GFT Equipment Engineering Co., Ltd.

86 Xincunzhonglu, Liuwei, Hongqiao, Taixing, Jiangsu 225444, China. Joint venture established 2021 — same technology as the German plant, full production and testing capability.

Asia-Pacific team
AP

Asia-Pacific — GFT Asia-Pacific Sales Center

ACE Mender Pty Ltd. Sales, technical support and service for GFT valves across the Asia-Pacific region. Contact Kris Ruan for inquiries.

In-House Production & Testing

From casting and moulding to lining and final test — all under one roof.

CNC machining

CNC Machining

Precision CNC machine tools for valve bodies and components.

Lining workshop

PFA / PTFE Lining

Professional plastic moulding equipment and fluorine-lined element sintering furnaces.

Assembly

Assembly & Clean Workshop

Controlled clean-room assembly for reliable, contamination-free valves.

Valve testing

Automatic Valve Testing

Automatic test devices, product-development testing and quality-control test benches on every line.

Certified to International Standards

Same technology source as the German factory — every product to DIN / ASME standards.

01

TÜV ISO 9001:2015

Certified quality management system.

02

TÜV Modul A2 · CE 0035

European pressure equipment conformity.

03

TA-Luft & DIN EN ISO 15848-1

German Clean Air Act fugitive-emission certification.

04

PED / ASTM Castings

Valve castings to German PED or ASTM requirements.

05

MTC 3.1 Test Reports

Material and test certificates available for all products.

06

China Pressure Piping License

Licensed pressure piping manufacturing in China.

ISO 9001
TÜV Rheinland
TÜV certificate
Pressure piping license
GFT PFA lined valve

Built for Corrosive Service

Casting materials WCB / CF8 / SS316L. Full PFA lining, TFM seats and bellows stem seals for high temperature, high vacuum and severe corrosion. Manual, pneumatic and electric actuation available across the range.

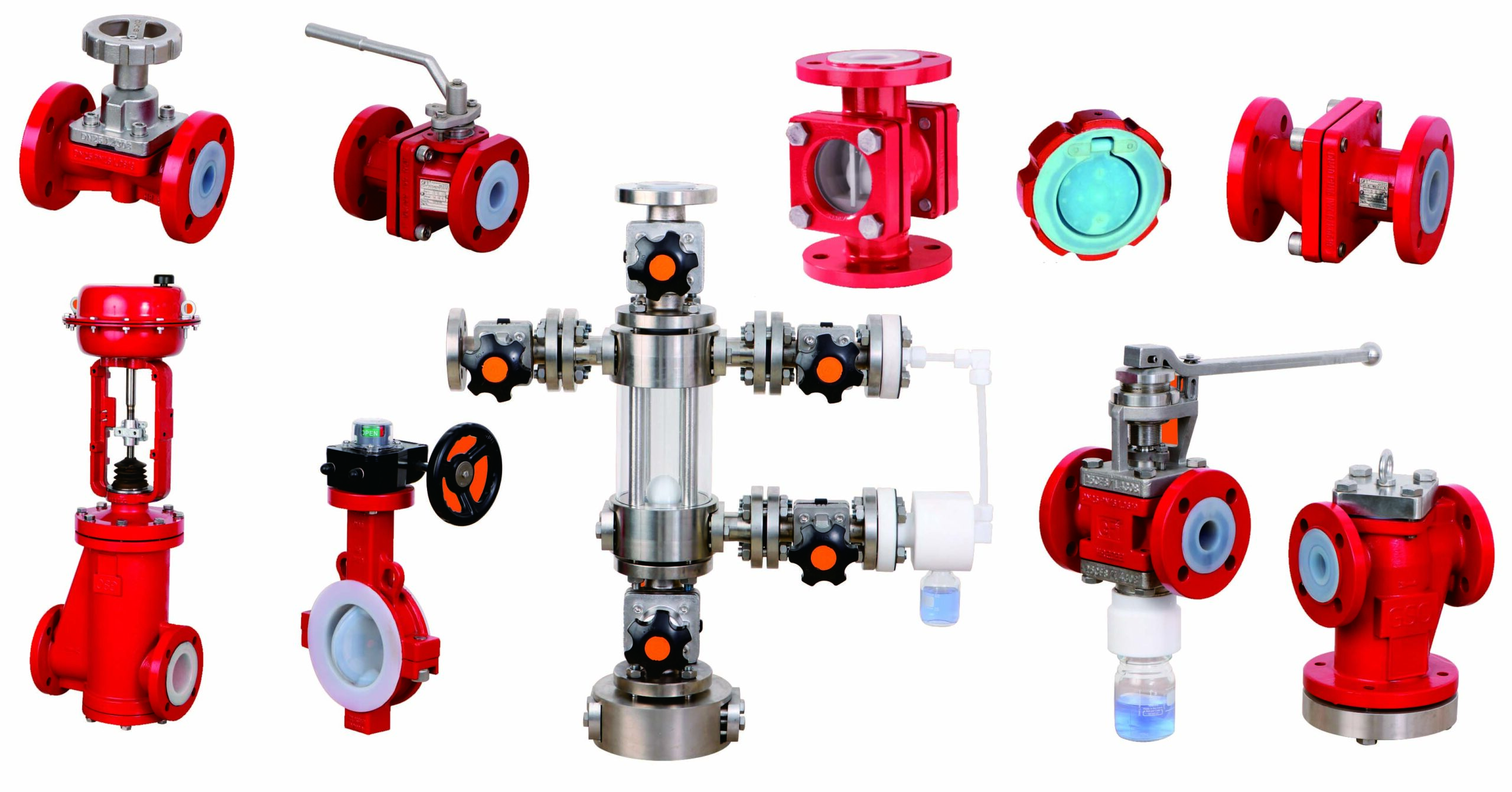

PFA Lined Valves & Systems

Twelve series covering ball, butterfly, diaphragm, check, sampling, control and reactor systems.

SP ball valve

SP Series — Ball Valves

DN15–200 (½"–8"), -60~200℃, -1~16 bar. Full port, TFM bellows stem seal, TA-Luft leakage test, one-piece ball & spindle.

PAP butterfly valve

PAP Series — Butterfly Valves

DN40–600 (1½"–24"), -20~200℃, PN16 / ANSI 150. PFA seat & disc, wafer connection, TFM bellows seal.

MV diaphragm valve

MV Series — Diaphragm Valves

DN15–250 (½"–10"), -30~150℃, PN16 / ANSI 150. Weir type, EPDM / PTFE diaphragm.

PRV sampling valve

PRV Series — Sampling Valves

DN25/40/50/80, -40~200℃, PN16. Cavity-free, PFA bellows seal, spring safety return, optional safety box & injection adapter.

GSO basket strainer

GSO Series — Basket Strainers

DN25–150, -10~150℃, housing 15 bar. Full vacuum design, TFM double-wall basket, ETFE / PTFE filter web.

CVB ball check valve

CVB Series — Ball Check Valves

DN25–150 (1"–8"), -10~200℃, PN16 / ANSI 150. German-made PTFE hollow ball, micro-pressure opening, sight-glass type.

CVS swing check valve

CVS Series — Swing Check Valves

DN40–400 (1½"–16"), -40~200℃, PN16 / ANSI 150. WCB / 304 + PFA, sandwich installation, vacuum-proof anchored lining.

BDV bottom drain valve

BDV Series — Bottom Drain Valves

DN150/100, 100/80, 80/50, -60~180℃, 10 bar. PFA-lined spindle, TFM seat, bellow seal — no residue in the reactor.

HV shut-off valve

HV Series — Shut-Off Valves

DN25–150, -10~180℃, 15 bar. Manual / pneumatic actuation with bellow stem seal.

SPV V-port ball valve

SPV Series — V-Port Ball Control Valves

DN15–150 (1"–8"). Equal percentage to DIN EN 60534, rangeability 1:25, TA-Luft compliant self-adjusting packing.

GCV control valve

GCV Series — Globe Control Valves

DN25–150, -10~180℃, 15 bar. Pneumatic, equal percentage / linear / on-off, rangeability 1:25 (1:100 with V-plug).

GRS reactor sampling system

GRS Series — Reactor Sampling System

Vacuum or circulating sampling up to 150℃. Easy measurement-unit assembly, mobile design, optional automatic control.

Catalogs & Technical Data

Can't find what you need? Contact us below to request it.

Talk to Our Team

For valve selection, quotations and technical support, contact the GFT office nearest you.

DE
GERMANYGFT German Fluorolined Technik GmbH+49 1511 678 6789
CN
CHINAJiangsu GFT Equipment Engineering Co., Ltd.+86 523 8766 6788
AP
ASIA-PACIFIC SALES CENTERACE Mender Pty Ltd+61 410 977 920
GFT ASIA-PACIFIC SALES CENTER ADDRESS

ACE Mender Pty Ltd
6/177 Carinish Road, Clayton, VIC 3168, Australia

↑
